BYCON Continuous Core Bit

The Continuous Core Bit offers flexible drilling length adjustment by adding or removing tube segments. Designed for reinforced concrete, it provides an economical and efficient drilling solution.

Product successfully added to the Quote List

SKU: CONTINUOUS CORE BIT Categories: Diamond Tools, Wet Core Bits

Adjustable and Cost-Efficient Core Bit for Reinforced Concrete

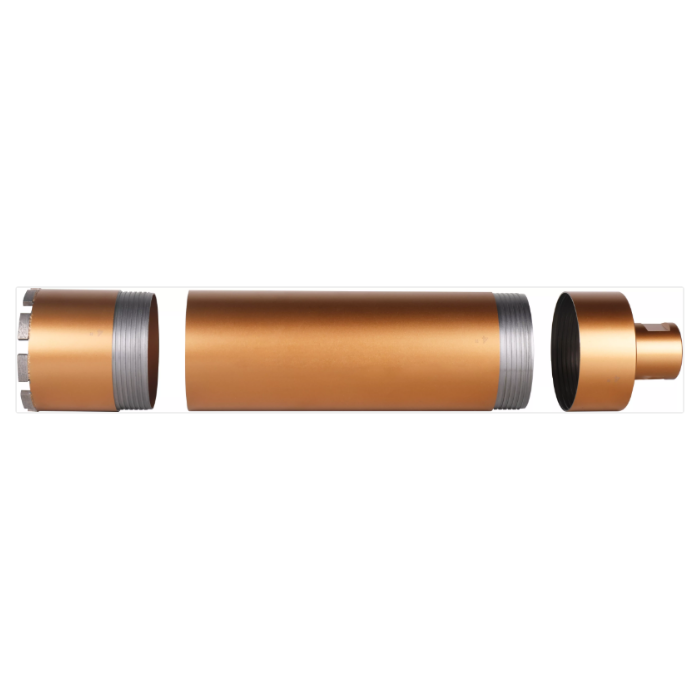

The Bycon Continuous Core Bit stands out for its modular design, allowing users to easily adjust the working length by increasing or decreasing the number of tube sections. This flexibility not only optimizes your workflow but also offers a cost-efficient alternative—when worn, only the drill head requires replacement. With its laser-welded construction, 1-1/4” UNC connection, and enhanced cutting performance from diamond powder segments, it is a powerful tool for drilling through reinforced concrete with speed and precision.

Key Features:

Adjustable tube length: Add or remove tube segments to suit different project needs
Cost-saving solution: Replace only the worn-out head instead of the entire bit
Laser welded: Ensures strong bonding for extended durability
High-speed performance: Enhanced with special diamond powder for fast drilling
Rebar-friendly: Excellent performance when cutting through reinforced concrete

What’s Included:

1× Drill Head (selected diameter)
1× Coupling Tube (100 mm)
Laser-welded diamond segments

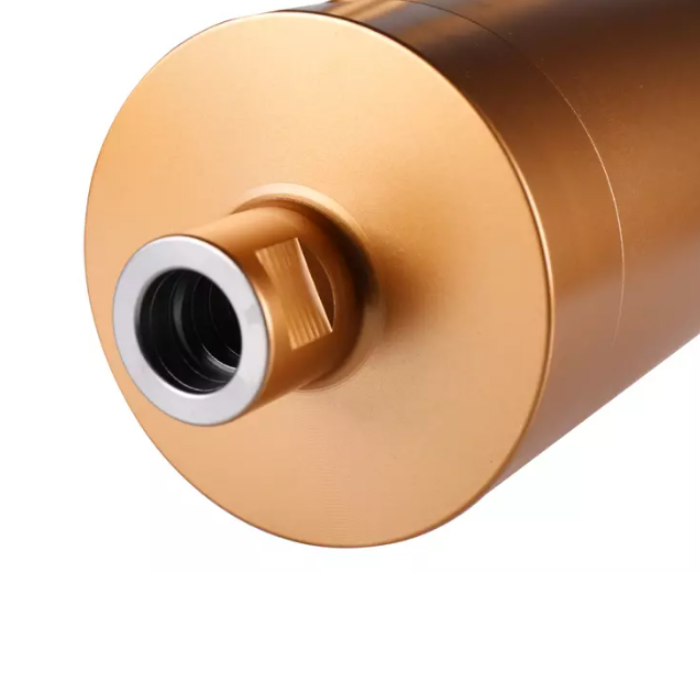

Compatible with 1-1/4” UNC core drills

Technical Specifications:

Art No.	Diameter (mm)	Drill Head Length (mm)	Thread	Coupling Length (mm)	Segment Size (mm)	Segment Qty
2012025	25	30	1-1/4″	100	12×10×4.5	4
2012032	32	35	1-1/4″	100	15×10×4.5	4
2012040	40	35	1-1/4″	100	15×10×4.5	5
2012050	50	35	1-1/4″	100	24×10×4.5	6
2012065	65	40	1-1/4″	100	24×10×4.5	7
2012077	77	40	1-1/4″	100	24×10×4.5	8
2012087	87	40	1-1/4″	100	24×10×4.5	9
2012108	108	70	1-1/4″	100	24×10×5.0	9
2012127	127	90	1-1/4″	100	24×10×5.0	10
2012158	158	90	1-1/4″	100	24×10×5.0	13
2012180	180	90	1-1/4″	100	24×10×5.0	15
2012200	200	90	1-1/4″	100	24×10×5.5	17
2012250	250	90	1-1/4″	100	24×10×5.5	19
2012300	300	90	1-1/4″	100	24×10×5.5	23
