BYCON DB-202D Dry Diamond Core Drill Motor | 2600W | Micro Percussion

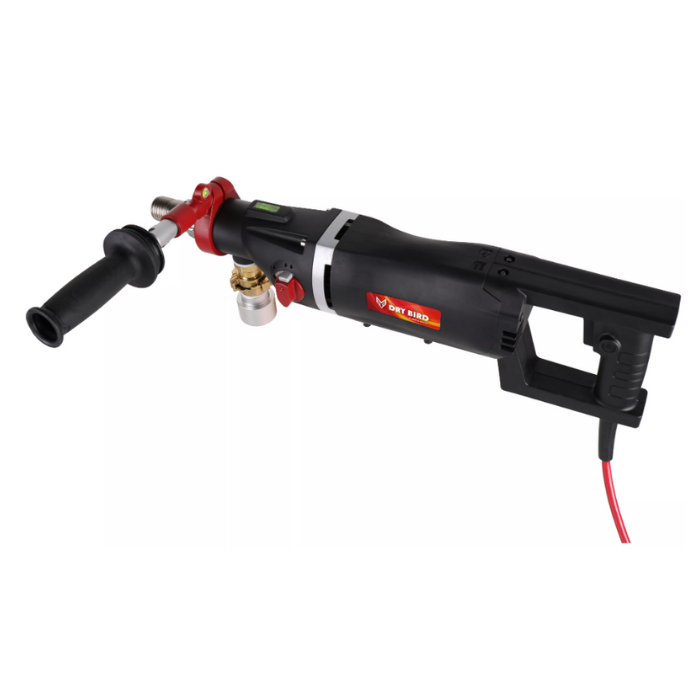

BYCON DB-202D Micro Percussion Core Drill – 2600W, Brushless, Dual Speed

The BYCON DB-202D is a high-performance micro percussion core drill motor engineered for heavy-duty dry drilling in reinforced concrete and other dense construction materials. With a powerful 2600W brushless motor and dual-speed gear control, this drill excels in both precision and endurance. The switchable micro percussion function boosts efficiency on tough materials, while features like soft start, overload protection, and a mechanical slip clutch ensure safety and comfort. Weighing just 6.05 kg, it’s ideal for handheld or rig-mounted use. Built for intensive professional use, this motor offers clean, stable performance with broad compatibility across core bits in the European market.

Key Features

• 2-Speed Gear Regulation: Optimized speeds for a wide range of core diameters and surfaces
• Micro Percussion Function: Reduces friction and enhances drilling through reinforced materials
• Handheld or Rig Use: Lightweight 6.05 kg design, compatible with 60 mm drill rig brackets
• Ergonomic Front Handle: Fully adjustable for comfort and control during prolonged work
• Soft Start & Overload Protection: Ensures gradual acceleration and safer start-up
• Mechanical Slip Clutch: Prevents injury and equipment damage from sudden bit jams
• Universal Thread Compatibility: 1¼″ UNC & ½″ G fits most core drill bits on the European market

Technical Specifications

• Power Output: 2600 W
• Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
• Current: 10 A (220 V) / 15 A (120 V)
• No-Load Speed (Gear 1 / 2): 700 / 1,550 rpm
• No-Load Impact Speed: 16,800 / 37,200 rpm
• Max Drilling Diameter (With Stand): Ø202 mm
• Drilling Diameter per Gear: Ø202 mm / Ø102 mm

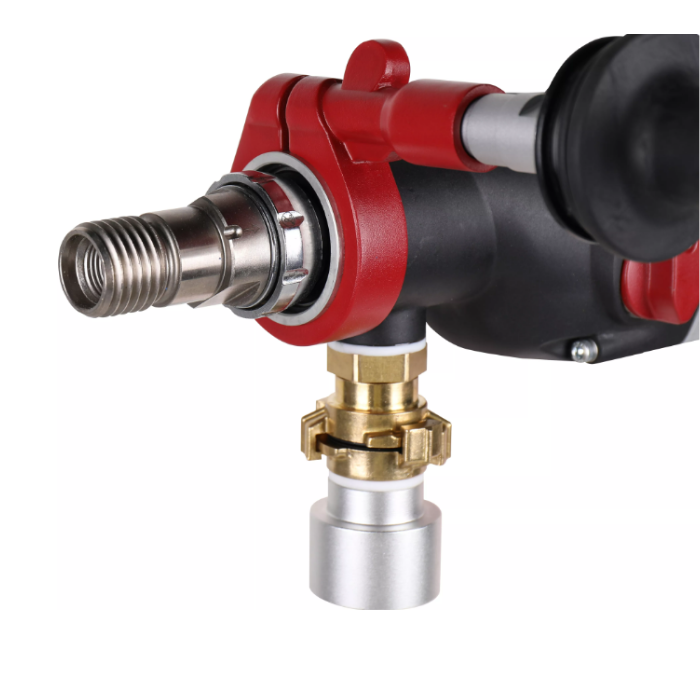

• Spindle Thread: 1¼″ UNC & ½″ G
• Weight: 6.05 kg
• Compatible Drill Stand: DBS-162
• Packing Size: 635 × 460 × 215 mm

What’s Included

• BYCON DB-202D Brushless Drill Motor (2600 W)
• Adjustable Side Handle
• Water Connection Adapter
• Power Cord
• User Manual
