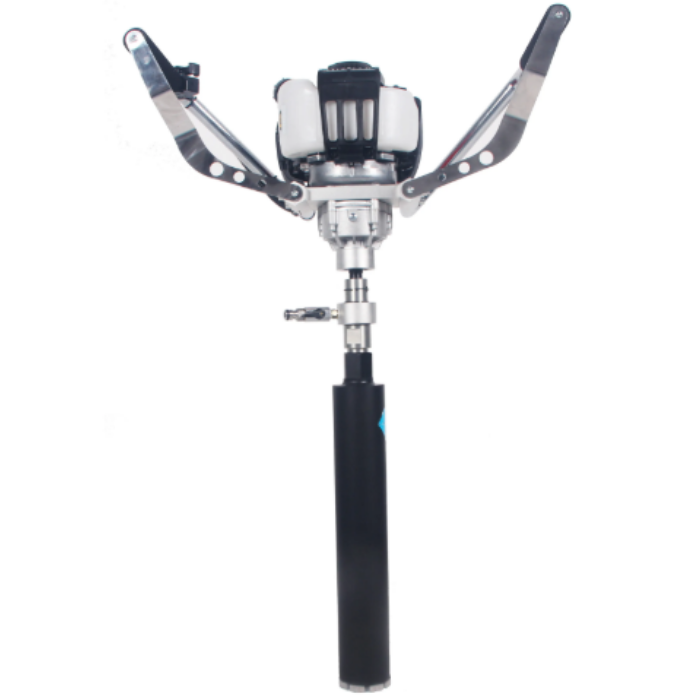

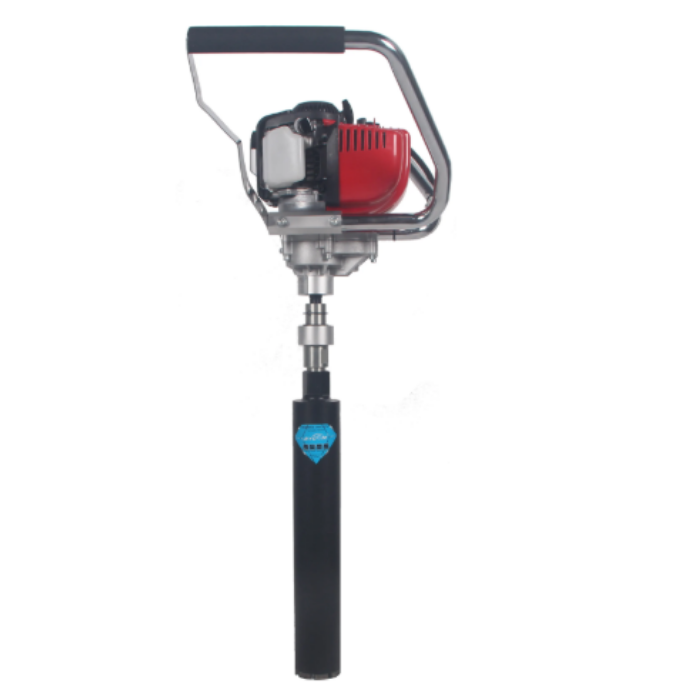

BYCON DBC-31P Petrol Core Drilling Motor – Up to 200 mm

BYCON DBC-31P Petrol Core Drilling Motor – Up to 200 mm, Vibration Control, Multi-Engine Option

The BYCON DBC-31P is a petrol-powered core drill motor designed for mobility, power, and on-site flexibility. This robust machine offers a choice of three high-performance engines, including the Honda GX35, to suit different drilling needs. Built for dry drilling without rebar up to Ø200 mm, it features a heavy-duty gearbox, centrifugal clutch system, and vibration-dampened handle for improved comfort and control during prolonged use. Whether you’re working on a remote construction site or tackling heavy-duty applications without access to electricity, the DBC-31P ensures consistent performance and easy handling.

Key Features

• Three Engine Options: Choose from Honda GX35 4-stroke, 140FA 4-stroke, or 1E44F-2A 2-stroke for optimal performance
• Heavy-Duty Gearbox: Engineered for long-lasting use in harsh construction environments
• Centrifugal Clutch System: Provides smooth power delivery and protects against overload
• Vibration-Dampened Handle: Reduces operator fatigue and ensures steady control
• Quick On/Off Switch: Allows safe and efficient operation even under rugged conditions

Technical Specifications

• Max Drilling Diameter: Ø150 mm (GX35 / 140FA), Ø200 mm (1E44F-2A)
• Power & Speed: 1.5 kW @ 350 rpm or 2.2 kW @ 330 rpm (depending on engine)
• Displacement: 35.8 cc / 37.7 cc / 51.7 cc
• Net Weight: 10.1 – 10.9 kg
• Art Numbers: 1132031 / 1133031 / 1131031
• Package Size: 54 × 28 × 41.5 cm

What’s Included

• BYCON DBC-31P Petrol Core Drill Motor (engine variant based on configuration)
• Vibration-Dampened Side Handle
• Mounted Control Switch
