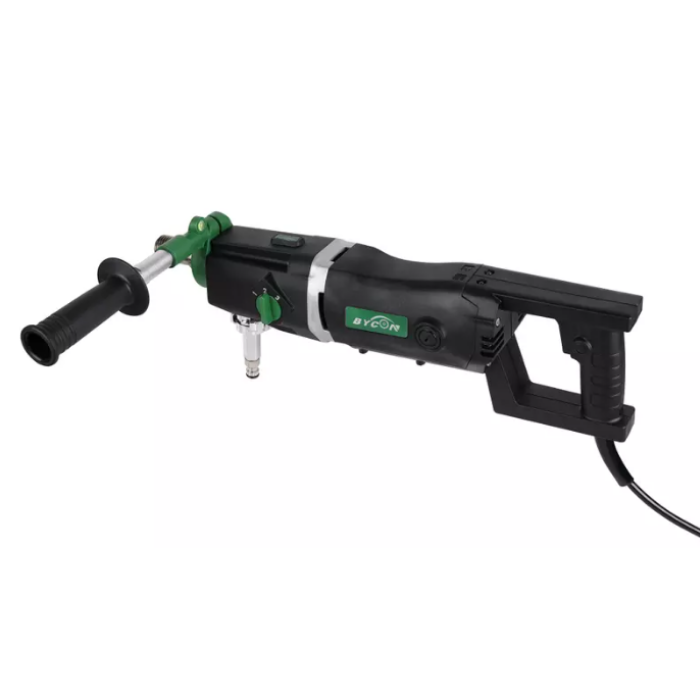

BYCON DMP-132D Wet Diamond Core Drill Motor | 1800W | Hand Held

BYCON DMP-132D Hand Held Core Drill Motor – 1800W, 3-Speed, Wet Use

The BYCON DMP-132D is a compact yet high-powered handheld core drill motor, ideal for professionals working in construction, plumbing, or renovation. With an 1800W motor and 3-speed gear regulation, it offers precise wet drilling performance in concrete and masonry. Designed for both handheld and rig-mounted operation, this drill motor adapts to any job site setup. Featuring a soft start system, PRCD leakage protection, and a mechanical slipping clutch, the DMP-132D combines control, safety, and efficiency in one lightweight tool. Its universal spindle thread fits most European core drill bits, offering maximum flexibility on-site.

Key Features

• 3-Speed Gear Regulation: Variable speeds for different core diameters and material types
• Dual Operation Modes: Use freehand (6.8–6.9 kg) or mount on a drill rig with 60 mm bracket
• Adjustable Front Handle: Easily repositioned for optimal ergonomics and control
• Soft Start Protection: Smooth acceleration to full speed reduces wear and power spikes
• PRCD Safety Switch: Protects against voltage surges and electric leakage
• Mechanical Slipping Clutch: Adds safety by preventing bit lock-up or overload

Technical Specifications

• Power Output: 1800 W
• Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
• Current: 9 A (220 V) / 15 A (120 V)
• Drilling Diameter (Handheld): Ø162 mm
• Max Drilling Diameter (With Stand): Ø202 mm
• No-Load Speed (Gear 1 / 2 / 3): 650 / 1,300 / 2,600 rpm
• Drilling Diameter per Gear (Handheld): Ø162 mm / Ø82 mm / Ø42 mm
• Drilling Diameter per Gear (With Stand): Ø202 mm / Ø102 mm / Ø62 mm
• Spindle Thread: 1¼″ UNC (M) & ½″ G (F)
• Net Weight: 6.8 kg (220 V) / 6.9 kg (120 V)
• Drill Stand Compatibility: DSP-162 / DSP-252
• Packing Size: 635 × 460 × 215 mm

What’s Included

• BYCON DMP-132D Hand Held Core Drill Motor (1800 W)
• User Manual
• Standard Accessories (per package configuration)
