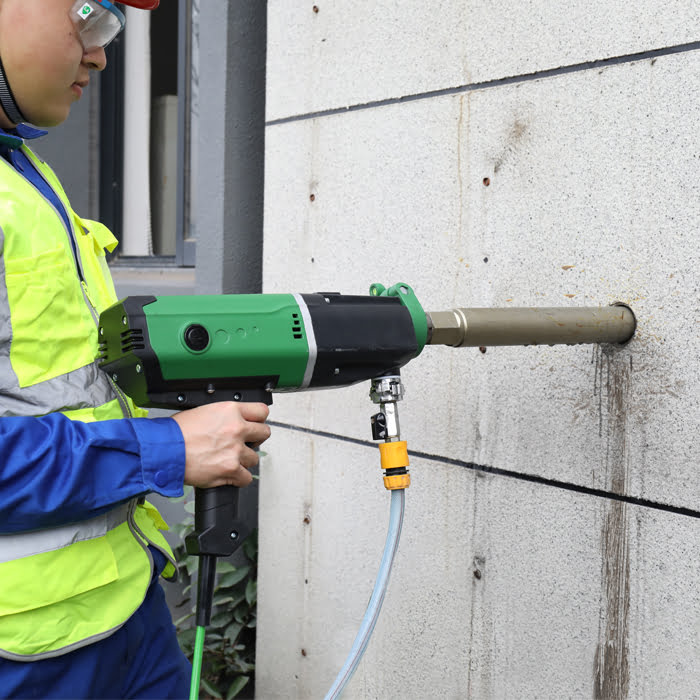

BYCON DMP-162P Handheld Diamond Core Drill 202mm – 2200W – Wet/Dry

Professional Wet & Dry Core Drill for Precision Drilling

The BYCON DMP-162P is a high-performance core drill designed for contractors, electricians, plumbers, and industrial users. Equipped with a 2200W motor, this drill provides exceptional drilling power for reinforced concrete, stone, limestone, tiles, natural stone, and asphalt.

• Dual Spindle Compatibility: 1 1/4″ UNC (M) & 1/2″ BSP (F) thread, suitable for most European core bits
• Smooth Soft Start Function: Protects the motor and prevents overload
• Adjustable Front Handle: Enhances control and comfort
• PRCD Safety System: Ensures electrical safety during operation
• High-Durability Gearbox: Oil-bath lubricated magnesium gear housing for optimal performance

3-Speed Gear System for Optimized Drilling
The DMP-162P features a 3-speed transmission that allows operators to adjust the speed based on the material and drill bit diameter:
✅ 650 RPM – For drilling up to 162mm in concrete and 202mm in brickwork
✅ 1300 RPM – Ideal for 82mm in concrete and 102mm in brickwork
✅ 2600 RPM – Best suited for 42mm in concrete and 62mm in brickwork

📌 Note: It is highly recommended to use a drill stand for drilling above 80mm for maximum stability and extended machine lifespan.

What’s Included?

• BYCON DMP-162P Handheld Diamond Core Drill 202mm – 2200W
• 2x Wrenches & Spare Carbon Brushes
• Adjustable Side Handle, Safety Glasses & Ear Protection
• Quick-Connect Vacuum Hose Adapter
• Quick-Connect Water Hose Adapter
• Quick-Locking Mechanism
• User Manual

📌 Compatible with BYCON DSP-162 Core Drill Stand for precision drilling and enhanced safety.
