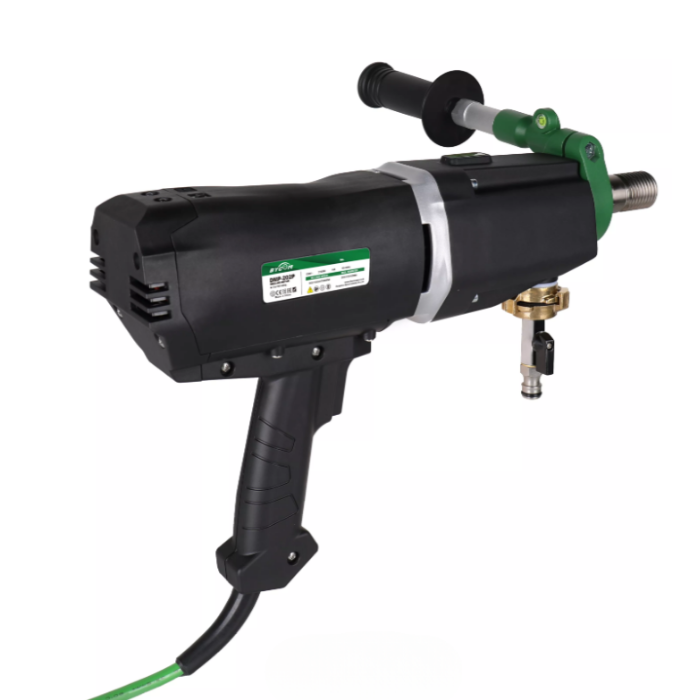

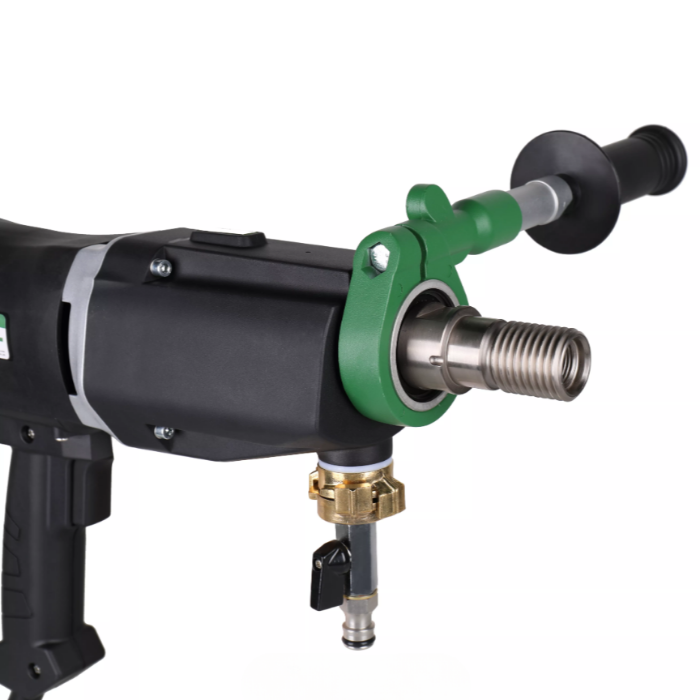

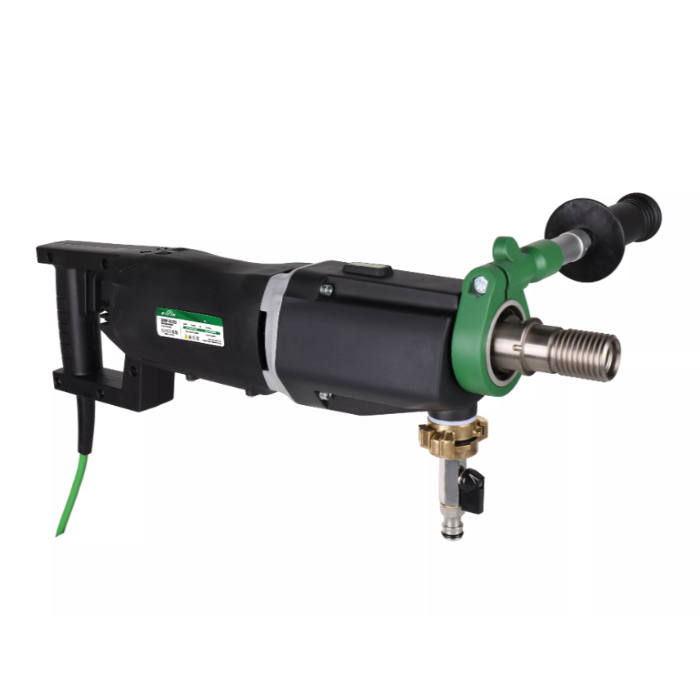

BYCON DMP-202BD Heavy Duty Brushless Drilling Motor

The BYCON DMP-202BD is a powerful brushless core drilling motor with 3-speed gearbox, designed for both wet and dry applications up to Ø202mm. Its smart LED indicator provides real-time overload and maintenance alerts.

Heavy Duty Brushless Drilling Motor for Wet & Dry Core Drilling

The DMP-202BD is a heavy-duty 2600W motor engineered for precision core drilling tasks in reinforced concrete and other construction materials. Its three-speed transmission allows optimal performance for various diameters, from 76mm to 202mm. With a brushless design, this motor ensures minimal maintenance, extended lifespan, and high efficiency. The integrated LED indicator alerts the operator for overload, overheating, and carbon brush replacement, enhancing jobsite safety and productivity. Compatible with DSP-162 & DSP-252 drill stands.

Key Features

Brushless motor – Efficient, low-maintenance performance with increased service life
Smart LED indicator – Alerts for overload, overheating, and brush replacement

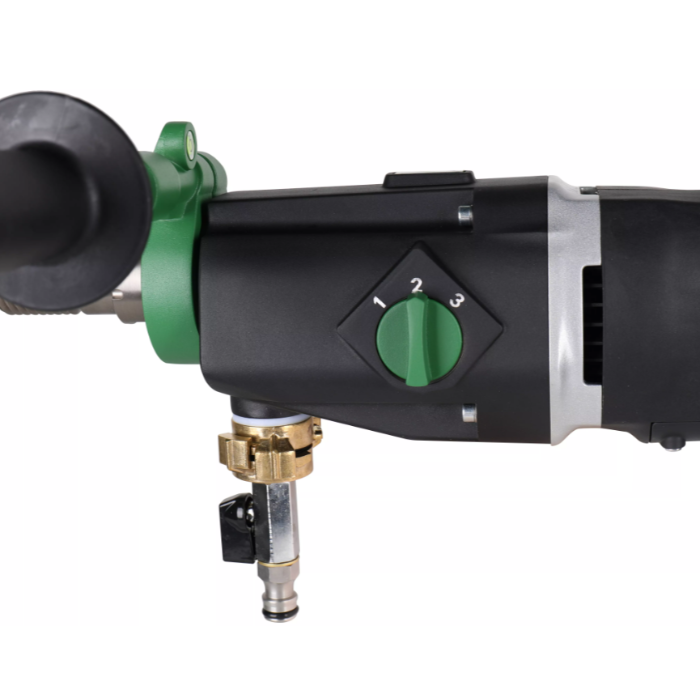

Three-speed gearbox – Optimized RPMs for different drill diameters
Dual voltage option – 220V/50Hz or 120V/60Hz for flexible site use
Portable or rig-mounted use – Suitable for handheld or stand-mounted drilling

What’s Included

DMP-202BD Core Drill Motor
User Manual

Power	2600W
Voltage/Frequency	220V / 50Hz or 120V / 60Hz
Current	14A (220V) / 25A (120V)
Drilling Diameter (Gear 1/2/3)	202mm / 132mm / 76mm
No-load Speed	510 / 1450 / 3000 RPM
Max. Drilling Diameter	202mm
Spindle Thread	1-1/4” UNC
Weight	6.65 KG
Drill Stand Compatibility	DSP-162, DSP-252
Packing Size	635 × 460 × 215 mm
