BYCON DMP-202BP Wet Diamond Core Drilling Motor | 2600W | Brushless

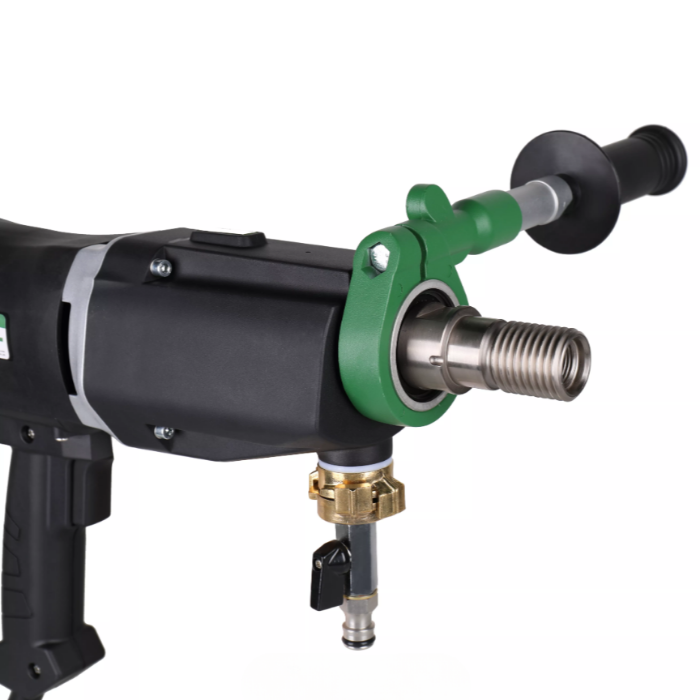

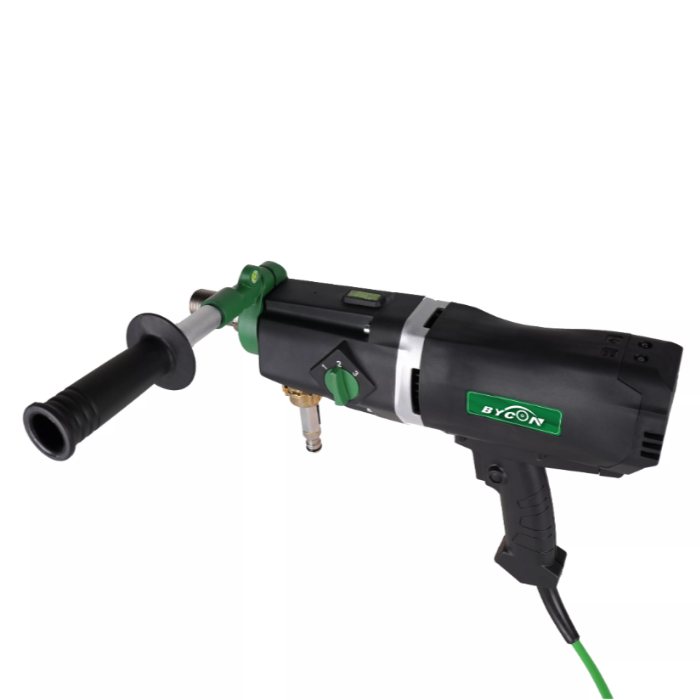

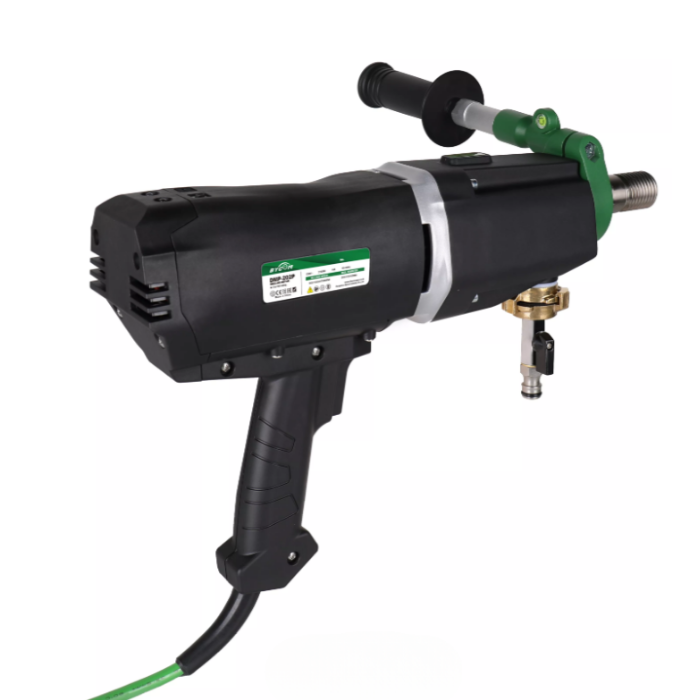

BYCON DMP-202BP Brushless Core Drilling Motor – 2600W, 3-Speed, Wet Use

The BYCON DMP-202BP is a professional 2600W core drill motor built to handle the toughest wet drilling jobs in reinforced concrete and other high-density materials. Featuring a robust brushless motor and a 3-speed gearbox, it allows smooth and efficient drilling up to Ø202 mm. Designed for both handheld and rig-mounted use, this motor offers job site flexibility without compromising on power. With integrated smart LED indicators for overload, overheating, and maintenance alerts, the DMP-202BP ensures maximum safety and long-term reliability. Its compact, heavy-duty construction makes it an essential tool for construction professionals.

Key Features

• Brushless Motor (2600W): Ensures powerful, low-maintenance drilling performance
• 3-Speed Gearbox: Select from 510 / 1450 / 3000 rpm for material-specific precision
• LED Indicator System: Provides real-time alerts for overheating, overload, and motor maintenance
• Dual Operation Modes: Usable handheld or with DSP-162 / DSP-252 drill stands
• Compact, Rugged Design: Built to withstand intensive wet drilling conditions on-site

Technical Specifications

• Power Output: 2600 W
• Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
• Current: 14 A (220 V) / 25 A (120 V)
• No-Load Speeds: 510 / 1,450 / 3,000 rpm
• Max Drilling Diameter: Ø202 mm
• Drilling Diameter per Gear: Ø252 mm / Ø132 mm / Ø76 mm
• Spindle Thread: 1¼″ UNC
• Weight: 6.65 kg
• Compatible Drill Stands: DSP-162 & DSP-252
• Packing Size: 635 × 460 × 215 mm

What’s Included

• BYCON DMP-202BP Brushless Core Drill Motor (2600 W)
• Integrated Smart LED Indicator System
• Compatible with DSP-162 & DSP-252 (drill stands not included)
• Protective Packaging
• User Manual
