BYCON DMP-252 Wet Diamond Core Drilling Motor | 2600W | Heavy Duty | Rig Mounted

BYCON DMP-252 Core Drilling Machine – 2600W, 3-Speed, Rig-Mounted

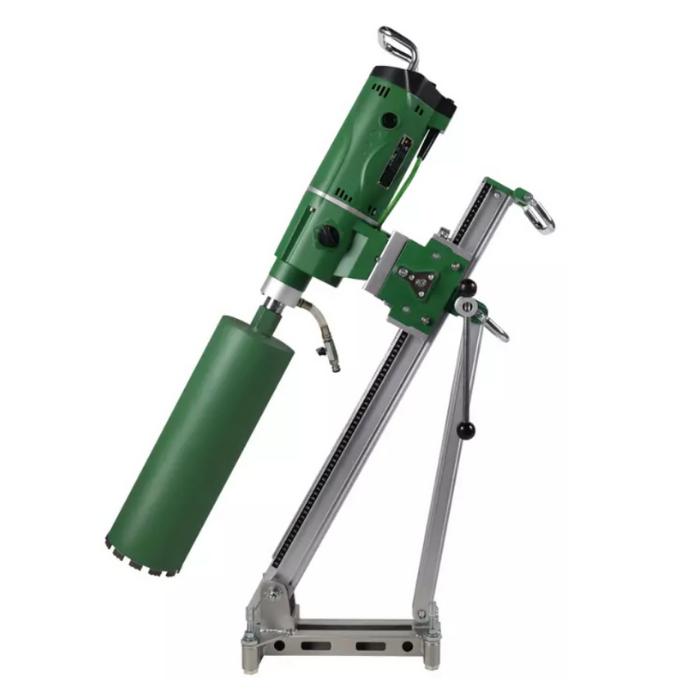

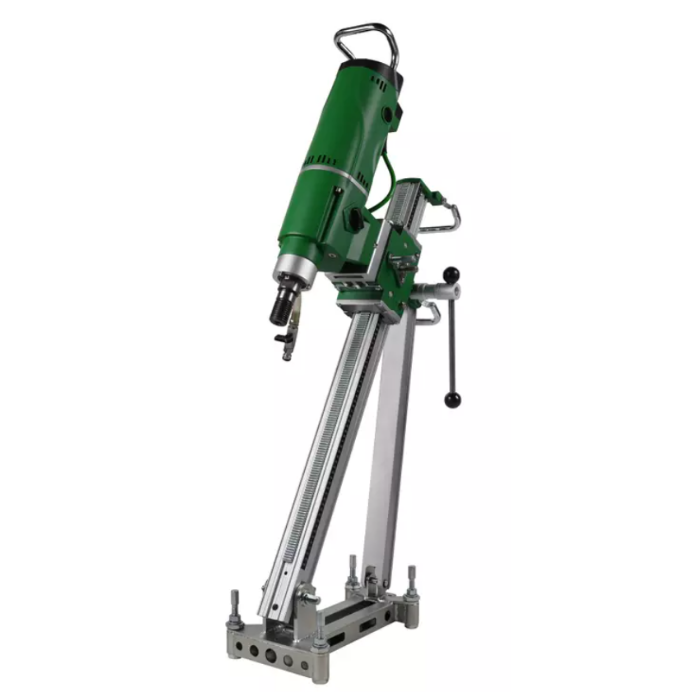

The BYCON DMP-252 is a high-performance rig-mounted core drilling machine designed for demanding jobs in reinforced concrete with rebar. Powered by a 2600W motor and featuring a 3-speed gearbox, it handles core diameters up to Ø252 mm with ease. The machine is equipped with both mechanical and electronic safety systems including soft start, PRCD protection, overload alerts, and a mechanical slipping clutch for user safety. Premium-grade components such as a KHGEARS gear system, a heavy-duty armature, and external carbon brush access ensure exceptional durability and minimal downtime. Engineered for reliability and precision, the DMP-252 is the ultimate tool for serious professionals.

Key Features

• 2600W High-Performance Motor: Offers powerful and consistent drilling in reinforced concrete with rebar
• 3-Speed Gearbox: Choose between 560 / 1120 / 1680 rpm for drilling Ø80 mm to Ø252 mm
• Soft Start & PRCD Protection: Smooth motor startup with protection against electrical hazards
• Mechanical Slipping Clutch: Enhances operator safety by preventing sudden torque spikes
• External Carbon Brushes: Easy-access brush replacement for reduced service time
• KHGEARS Gear System: High-grade gearing ensures efficient cooling and extended life
• Universal Mounting: Standard 79 × 41 mm holes compatible with most drill rigs

Technical Specifications

• Power Output: 2600 W
• Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
• Current: 14 A / 25 A
• No-Load Speed (Gear 1 / 2 / 3): 560 / 1,120 / 1,680 rpm
• Drilling Diameter (Gear 1 / 2 / 3): Ø252 mm / Ø102 mm / Ø80 mm
• Max Drilling Diameter (Concrete): Ø252 mm
• Spindle Thread: 1¼″ UNC
• Net Weight: 12.7 kg
• Packing Size: 635 × 460 × 215 mm
• Compatible Drill Stands: DSP-252 / DSP-352

What’s Included

• BYCON DMP-252 Core Drill Motor (2600 W)
• PRCD Safety Plug
• Adjustable Side Handle
• Carbon Brush Set
• User Manual
• Transport Box
