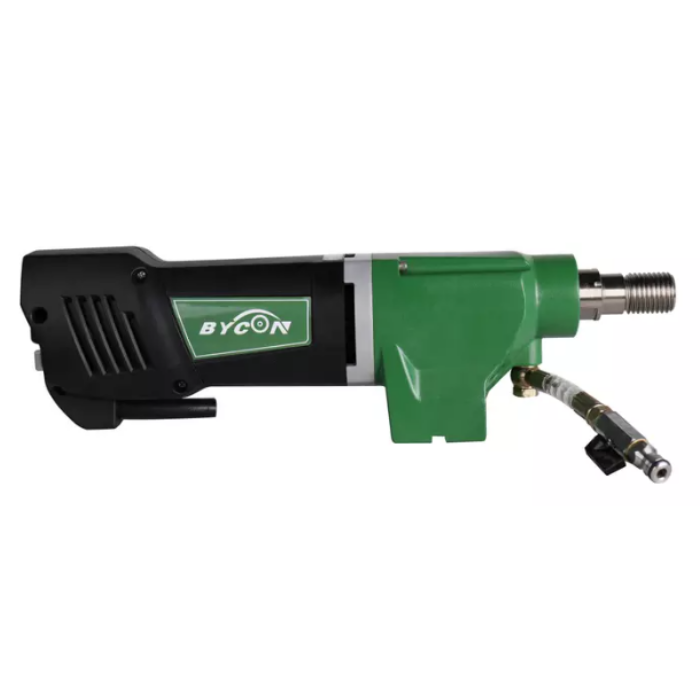

BYCON DMP-252B Wet Diamond Core Drilling Motor | 3000W | Brushless

BYCON DMP-252B Brushless Core Drilling Machine – 3000W, 3-Speed, Up to Ø252 mm

The BYCON DMP-252B is a top-tier brushless core drilling machine built for professionals requiring high performance, low maintenance, and maximum mobility. With a powerful 3000W brushless motor and a weight of just 6.8 kg, this machine delivers exceptional drilling capacity up to Ø252 mm in reinforced concrete, while remaining easy to transport and handle. The 3-speed oil-lubricated gearbox, overload clutch, and smart warning system provide unmatched durability and safety. Whether used for structural coring or installation work, the DMP-252B offers consistent, reliable results in demanding construction environments.

Key Features

• 3000W Brushless Motor: Delivers efficient, long-lasting power without carbon brush maintenance
• 3-Speed Gearbox: 610 / 1320 / 2750 rpm for optimized drilling performance across all core diameters
• Oil-Bath Lubrication with Pump: Ensures smooth, long-term gearbox operation under heavy loads
• Overload Clutch: Protects both operator and machine during high-resistance coring
• Lightweight Housing: Weighs only 6.8 kg for superior mobility on the job site
• Smart Warning System: Integrated alerts enhance safety and protect the motor

Technical Specifications

• Power Output: 3000 W
• Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
• Current: 16 A (220 V) / 25 A (120 V)
• No-Load Speed (Gear 1 / 2 / 3): 610 / 1,320 / 2,750 rpm
• Drilling Diameter (Gear 1 / 2 / 3): Ø252 mm / Ø132 mm / Ø76 mm
• Max Drilling Diameter (Concrete): Ø252 mm
• Spindle Thread: 1¼″ UNC
• Net Weight: 6.8 kg
• Compatible Drill Stand: DSP-252 (optional)
• Packing Size: 550 × 385 × 155 mm

What’s Included

• BYCON DMP-252B Brushless Core Drill Motor (3000 W)
• Tool Kit
• Instruction Manual
• Optional Drill Stand DSP-252 (available separately)
