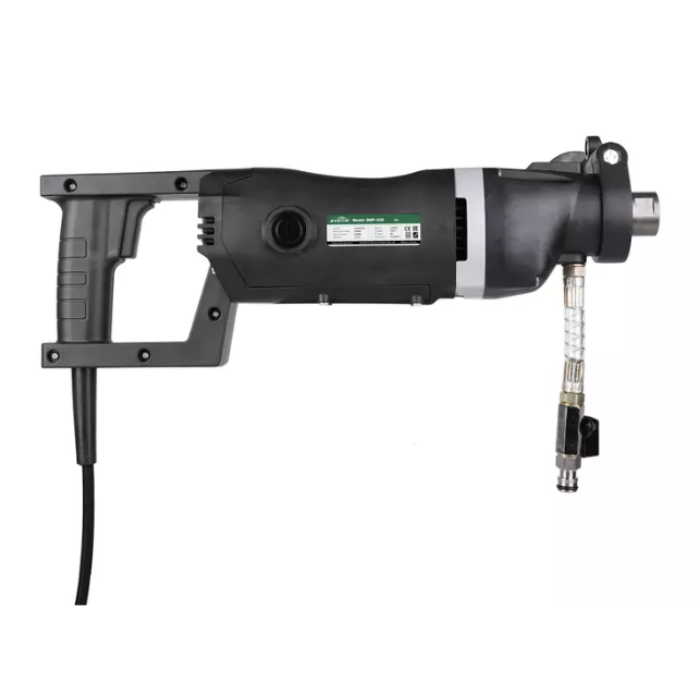

BYCON DMP-52D Wet Handheld Core Drill Motor – 1800W – Ø52 mm

BYCON DMP-52D Handheld Core Drill Motor – 1800W, Ø52 mm, Wet Use

The BYCON DMP-52D is a compact and lightweight core drill motor designed for wet drilling applications in concrete and masonry. With a powerful 1800W motor and a fixed speed of 2500 rpm, it delivers precise drilling performance up to Ø52 mm handheld and Ø62 mm with a rig. The DMP-52D features key safety components such as soft start, PRCD leakage protection, and a mechanical clutch for safe operation. Its low weight and adjustable handle make it ideal for mobile contractors working in tight or overhead spaces. Perfect for anchoring holes, utility penetrations, and plumbing installations.

Key Features

• 1800W Motor: Compact yet powerful for small-diameter wet drilling
• Max Drilling Diameter: Ø52 mm handheld, Ø62 mm with rigFixed Speed (2500 rpm): Optimized for clean, efficient cutting in concrete
• Wet Drilling Use Only: Water-assisted cooling extends tool and bit life
• Soft Start Technology: Prevents sudden torque and ensures smooth motor engagement
• PRCD Safety Device: Protects against electrical leakage and surges
• Mechanical Slip Clutch: Prevents injury in the event of a drill bit jam
• Adjustable Front Handle: Quick to reposition for ergonomic drilling angles
• External Carbon Brushes: Easy-access maintenance without motor disassembly
• Oil Level Indicator: Visual check for timely servicing

Technical Specifications

• Power Output: 1800 W
• Voltage: 220 V / 120 V
• Current: 9 A / 15 A
• Frequency: 50 / 60 Hz
• No-Load Speed: 2500 rpm
• Max Drilling Diameter (Handheld): Ø52 mm
• Max Drilling Diameter (With Stand): Ø62 mm
• Spindle Thread: 1¼″ UNC & ½″ G
• Net Weight: 5.6 / 5.65 kg
• Compatible Drill Stands: DSP-162 / DSP-252
• Packing Size: 635 × 460 × 200 mm

What’s Included

• BYCON DMP-52D Core Drill Motor (1800 W)
• Adjustable Handle
• External Carbon Brushes
• PRCD Safety Plug
• User Manual
