BYCON DPD-80 Portable Pole Driver

Lightweight 4-stroke petrol pile driver for posts up to 80 mm, with 4 interchangeable sleeves and carry case included.

SKU: DPD-80 Categories: , , , ,

Compact Power for Light-Duty Driving

The BYCON DPD-80 portable pole driver is a lightweight, petrol-powered solution for posts up to 80 mm in diameter. Designed for single-person operation, it includes four interchangeable piling sleeves and delivers reliable performance with a 4-stroke engine. Its compact build and soft-grip handle make it perfect for use in farming, vineyards, landscaping, and light construction tasks.

Key Features

  • 4-Stroke 37.7cc Engine: No fuel mixing needed. Moderate power ideal for 20–80 mm posts. (Optional Honda GX35 engine available.)
  • Variable Sleeves Included: 20–45 mm, 55 mm, 73 mm, and 80 mm sleeves support a wide range of post types and sizes.
  • Low Vibration: Soft grip handle and internal spring damping reduce operator fatigue.
  • Portable Design: Weighs only 12 kg. No need for external power or compressors.

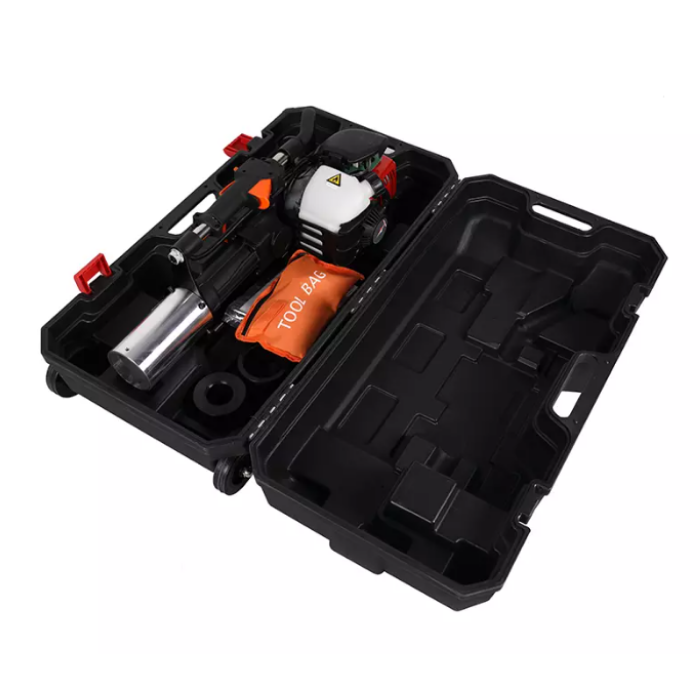

  • BMC Carry Case: Comes with a robust carry case with wheels for easy transport and storage.

What’s Included

  • 1 × DPD-80 Pole Driver
  • 4 × Interchangeable sleeves (20–45 mm, 55 mm, 73 mm, 80 mm)
  • 1 × Toolkit
  • 1 × Grease tube
  • 1 × User manual
  • 1 × BMC carry case with wheels
Max. Post Diameter

80 mm

Engine

4-stroke, single-cylinder, air-cooled

Displacement

37.7 cc

Fuel Tank Volume

0.64 L

Oil Capacity

0.12 L

Fuel

Unleaded gasoline (≥86 octane)

Max. Power/Speed

1.3 hp / 6,500 rpm

Max. Torque/Speed

1.63 Nm / 5,500 rpm

Fuel Consumption

≤ 0.8 L/h

Impact Frequency

1500–2000 BPM

Impact Energy

Up to 43.4 J

Carburetor Type

H129-1C4 / H629-1C4

Starter System

Hand pull start

Sleeves Included

20–45 mm, 55 mm, 73 mm, 80 mm

Net Weight

12 kg
