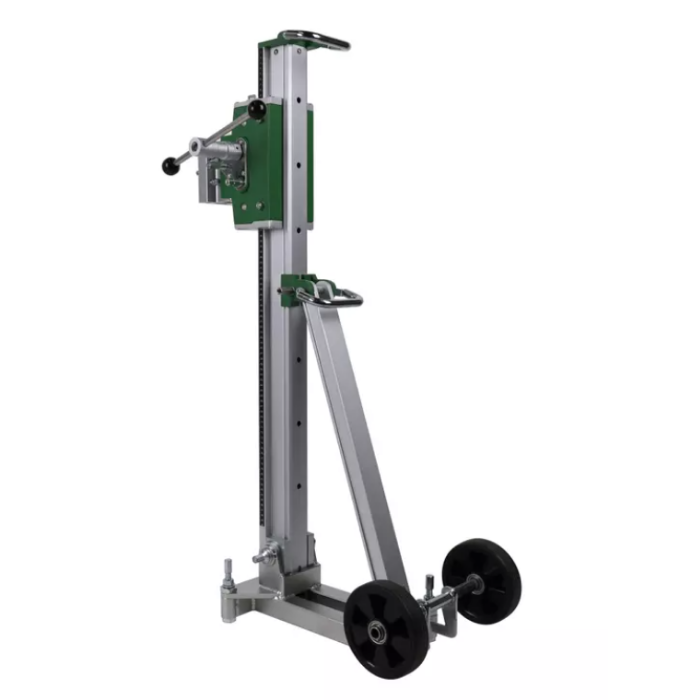

BYCON DSP-500 Drill Rig

Robust Core Drill Rig for Heavy-Duty Performance – DSP-500

The BYCON DSP-500 Drill Rig is designed for core drilling tasks up to 502 mm in diameter. Whether you’re working on floors, walls or ceilings, this heavy-duty rig is engineered for precision, rigidity and ease of use. Its optimized base plate ensures maximum stability under extreme torque loads. This makes the DSP-500 ideal for high-demand applications such as stitch drilling ventilation holes or plumbing feedthroughs. A reliable choice for professionals who need performance, accuracy, and durability in one rig.

Key Features:

• Adjustable column – 0-45° tilt for versatile drilling angles
• Compatible with 60mm and 100mm motor plates – fits most brands
• 1:2 gear reduction – reduces effort and provides higher torque
• Lightweight AZ91D magnesium carriage & aluminum roller
• Automatic spring lock – easy adjustment of the drill column
• Universal crank handle – also functions as a 13mm wrench
• Steel teeth – for accurate and long-lasting performance
• Tool-free carriage lock lever – improves safety and usability during transport

What’s Included:

• BYCON DSP-500 Drill Rig

• Integrated wheel kit

• Quick-release motor plate

• Operator manual
