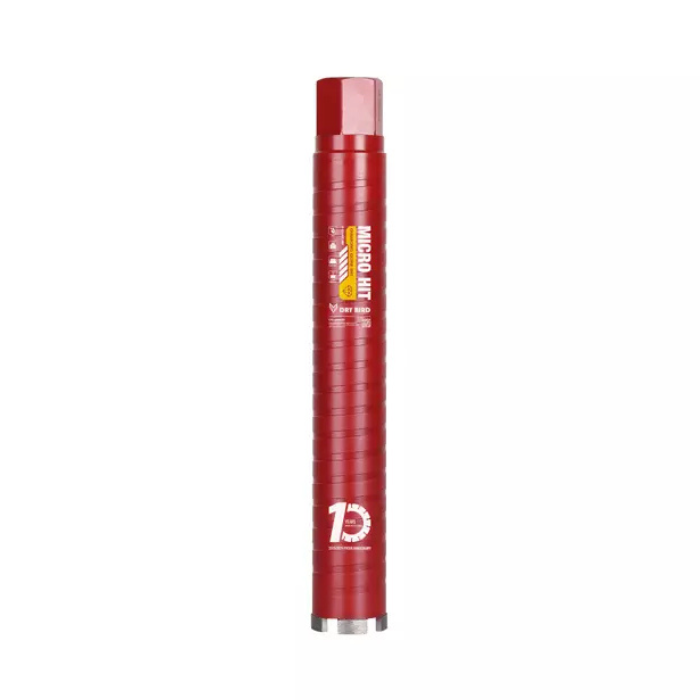

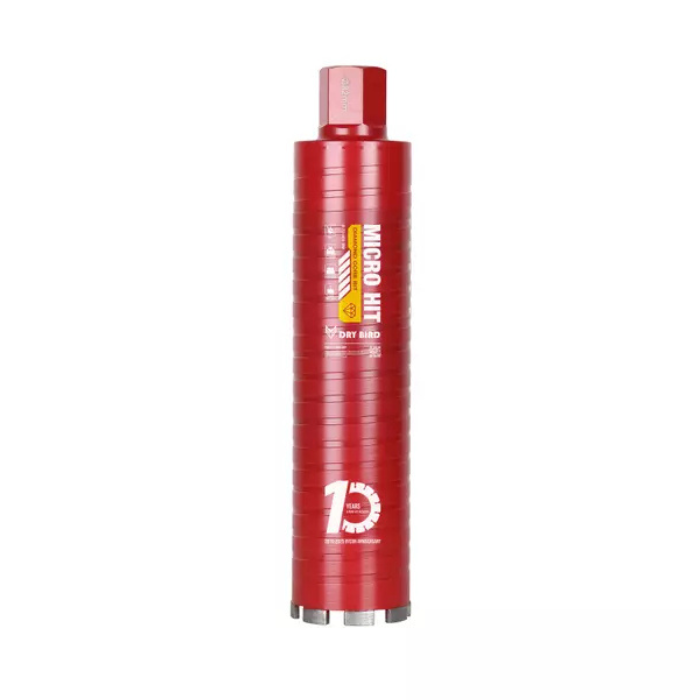

BYCON Micro Percussion Drill Bit – C-01

The C-01 micro percussion drill bits from BYCON are built for hand-held machines rated from 1800W to 3000W. Ideal for high-efficiency dry drilling in concrete, bricks, and various building materials.

Micro Percussion Drill Bit – C-01 Series

The BYCON DRY BRID C-01 series micro percussion drill bits are purpose-built for hand-held dry drilling equipment. With a recommended power range of 1800 to 3000 watts, they’re perfect for tasks requiring efficiency and durability. These bits deliver exceptional performance when drilling through reinforced concrete, masonry, and other tough building materials.

Key Features:

Handheld use: Designed for dry drilling machines operated by hand
Power tool compatibility: Suitable for tools rated between 1800W – 3000W
Material versatility: Ideal for reinforced concrete and masonry
High efficiency: Delivers precise and fast drilling performance
Micro percussion compatible: Engineered to handle micro percussive impact

What’s Included:

1× Micro Percussion Drill Bit (selected size)
Packaged for protection and easy transport

Technical Specifications:

Art No.	Diameter (mm)	Segment Size (mm)	Thread	Segment Radius (mm)	Segment QTY
2120032	32	193.810	1-1/4	R16	4
2120042	42	193.810	1-1/4	R21	4
2120052	52	203.810	1-1/4	R26	5
2120062	62	203.810	1-1/4	R31–38	6
2120072	72	203.810	1-1/4	R31–38	7
2120076	76	203.810	1-1/4	R31–38	7
2120082	82	203.810	1-1/4	R41–46	8
2120092	92	203.810	1-1/4	R41–46	8
2120102	102	203.810	1-1/4	R51–66	8
2120112	112	203.810	1-1/4	R51–66	9
2120122	122	203.810	1-1/4	R51–66	9
2120127	127	203.810	1-1/4	R51–66	9
2120132	132	203.810	1-1/4	R51–66	10
