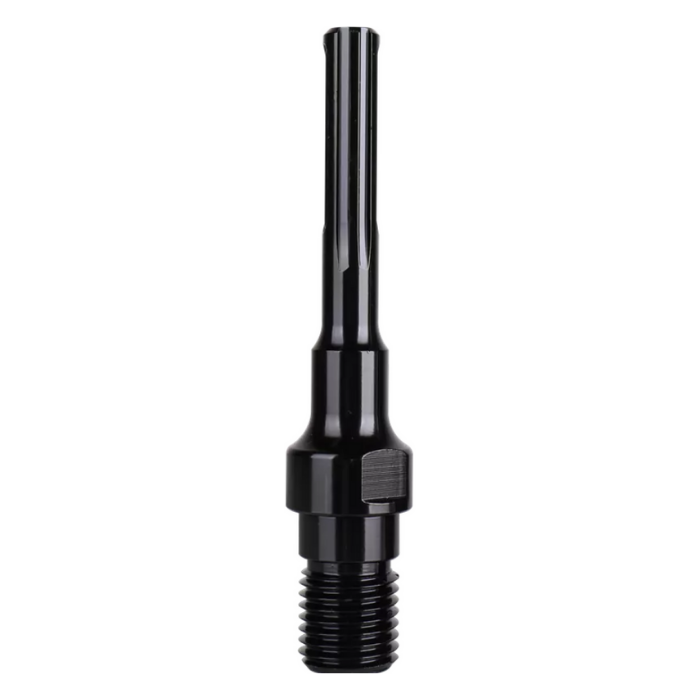

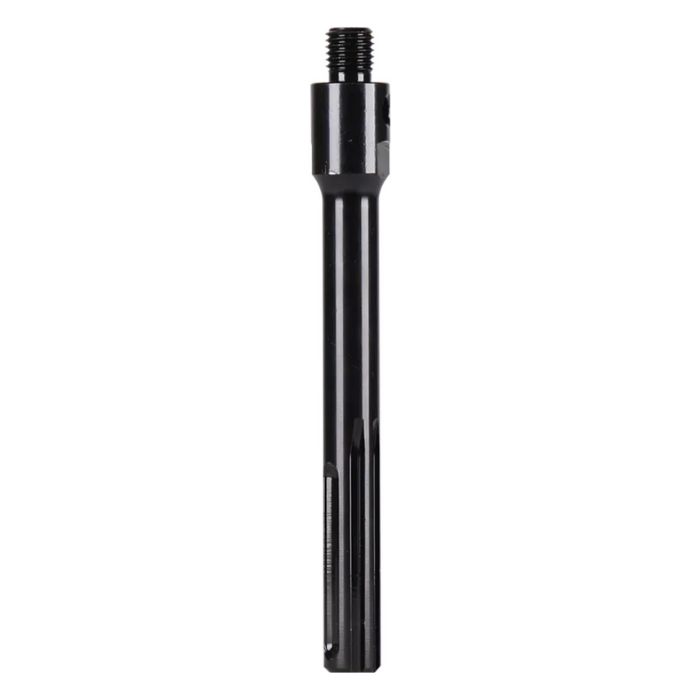

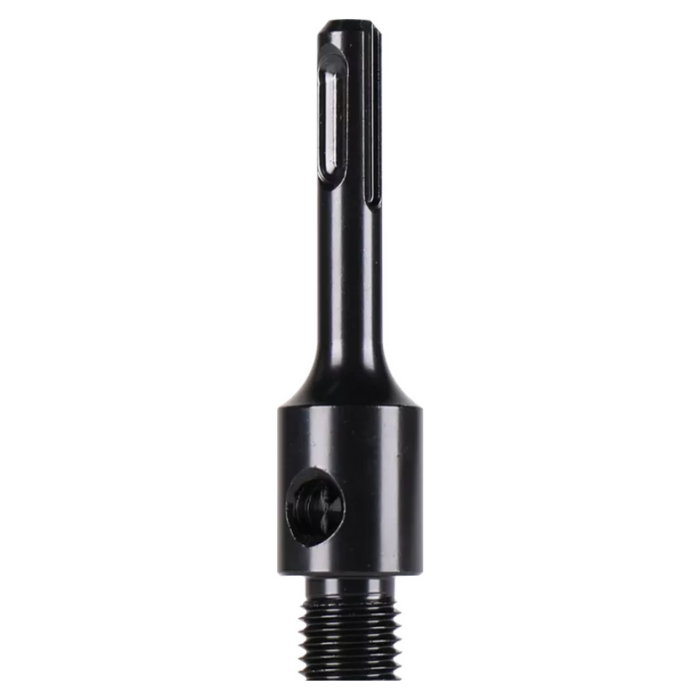

SDS Plus to BSP Adapter for Taper Drill

Versatile adapter for converting SDS Plus to 1/2 BSP (M16/5/8-11″) connections, ideal for use with taper drill bits.

Product successfully added to the Quote List

SKU: ADAPTER Categories: Accessories, Adaptor, Tool Adaptation & Compatibility

SDS Plus to BSP Adapter for Taper Drill

This high-quality adaptor allows you to connect taper drill bits to rotary hammers with SDS Plus, HEX, or SDS Max shanks. Designed for durability and reliable performance, it is available in various configurations including 1/2 BSP, 1/4 UNC, and M22. Ideal for heavy-duty drilling and construction tasks, it supports multiple lengths from 88 mm to 500 mm.

Key Features:

Universal compatibility: Works with SDS Plus, HEX, and SDS Max systems
Thread conversion: Converts to 1/2″ BSP, M22, or 1-1/4″ UNC depending on model
Flexible sizing: Available in lengths from 88 mm to 500 mm
Ideal for concrete and masonry: Perfect match for taper drills in demanding applications

Adapter Specifications

Description	Art Number	Length (mm)
SDS Plus to 1/2″ BSP (M16/5/8-11″) – for Taper Drill
	2610002	100
	2610004	115
	2610006	120
	2610008	200
	2610010	240
	2610012	300
	2610014	400
HEX to 1/2″ BSP (M16/5/8-11″) – for Taper Drill
	2610102	88
	2610104	100
	2610106	115
	2610108	120
	2610110	200
	2610112	240
	2610114	300
	2610116	400
SDS Max to 1-1/4″ UNC
	2610202	200
	2610204	240
	2610206	300
	2610208	400
	2610210	500
SDS Max to 1/2″ BSP (M16/5/8-11″) – for Taper Drill
	2610302	200
	2610304	240
	2610306	300
	2610308	400
SDS Plus to M22 – for Taper Drill
	2610402	100
	2610404	115
	2610406	120
	2610408	200
	2610412	300
	2610414	400
SDS Plus to 1/2″ BSP (M16/5/8-11″) – for Taper Drill
	2610602	100
	2610604	120
	2610606	200
	2610608	240
	2610610	300
	2610612	400
